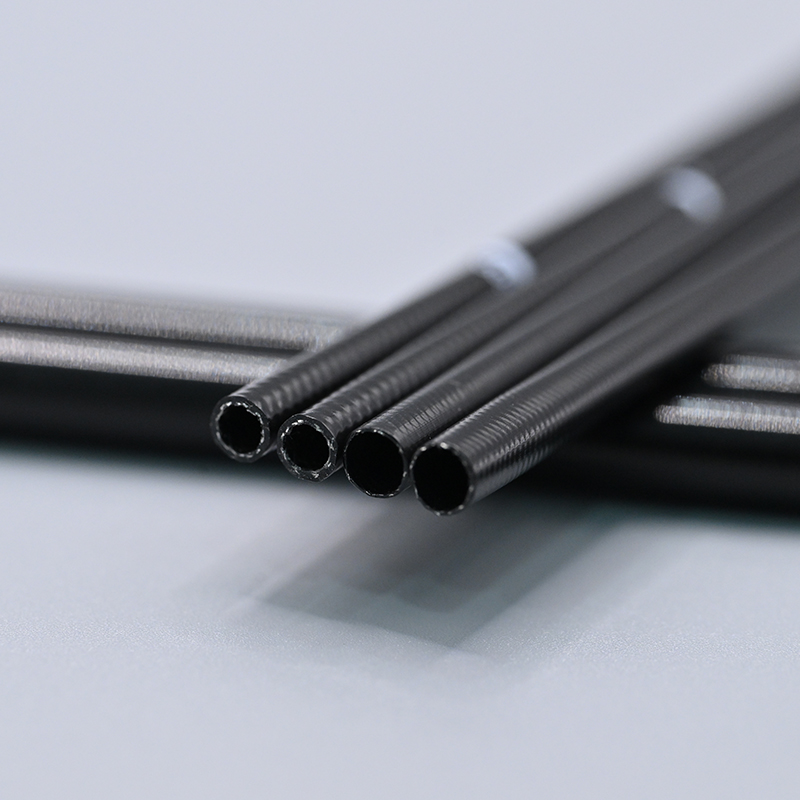

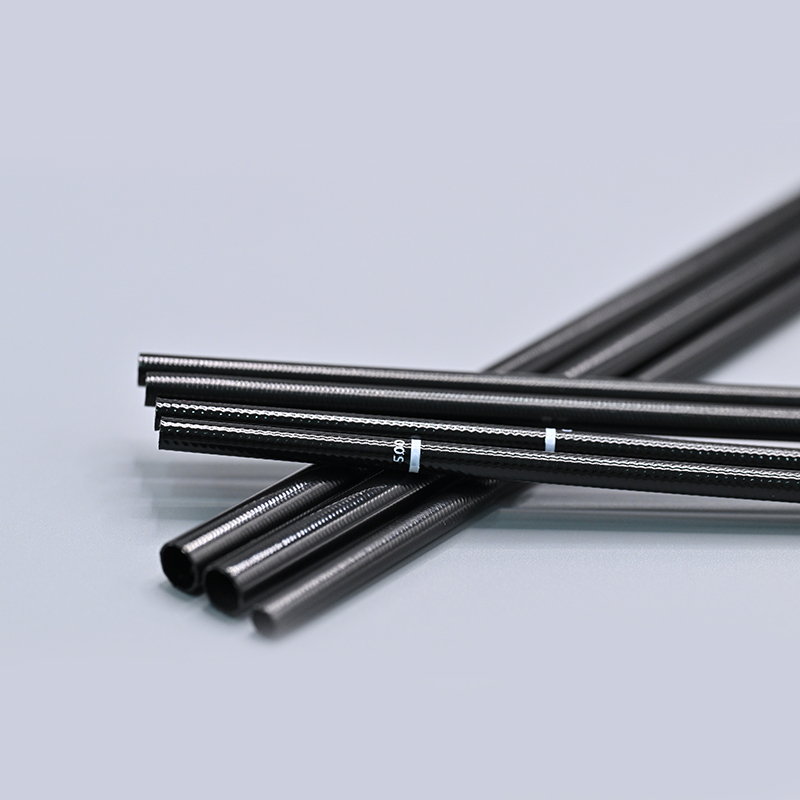

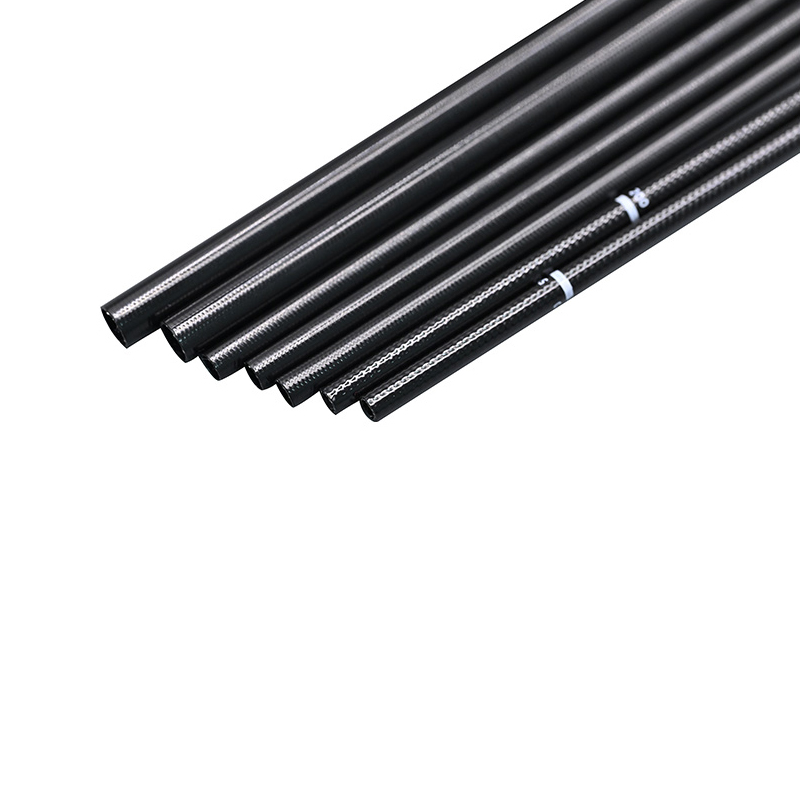

Endoscope Insertion Tube

The endoscope insertion tube is a precision medical device used in minimally invasive surgery. It enters the body through the body's natural lumen or tiny incisions and cooperates with the endoscope system to achieve visual observation and operation of internal organs.

Advantages:

Available in TPU, PA12 or PEBAX materials;
The inner and outer layers of the tube wall are made of medical materials, which meet the biological evaluation requirements;

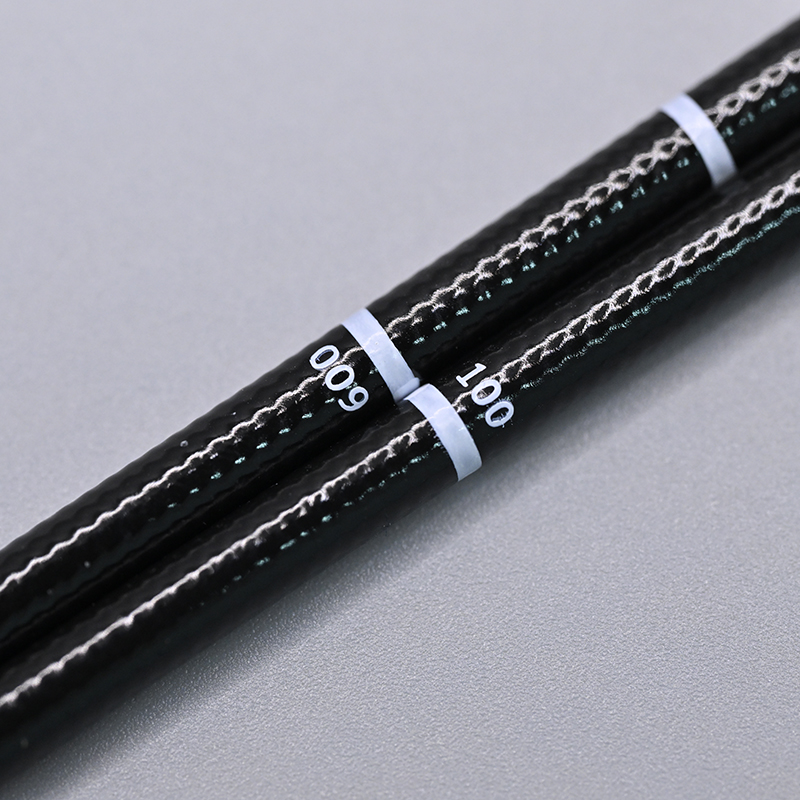

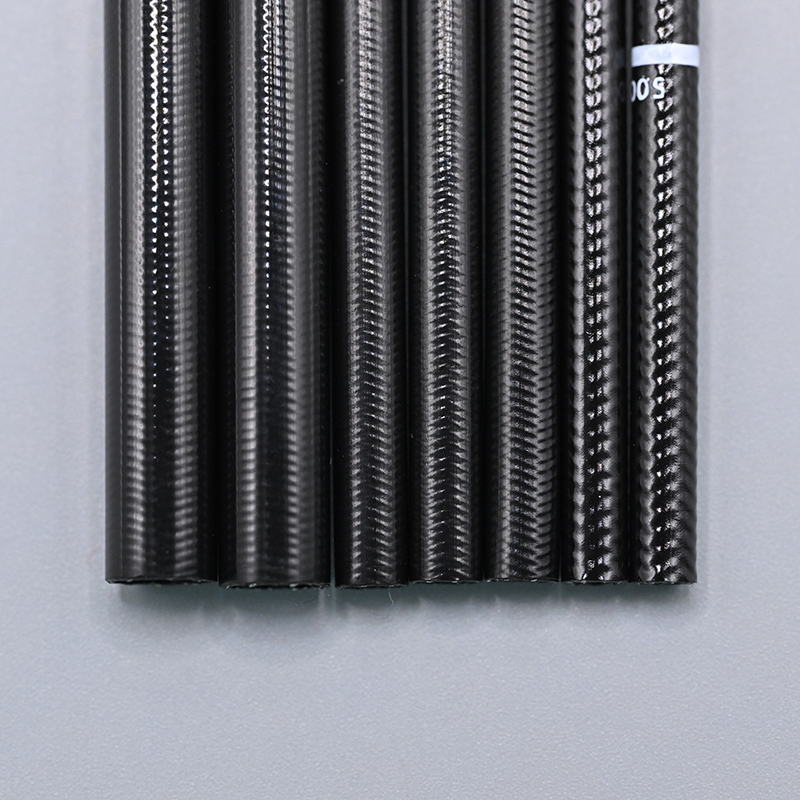

The middle braided layer can be braided with stainless steel wire of various specifications according to requirements;
The port can be expanded according to actual conditions to facilitate head assembly;
The port is smoothly expanded, which is convenient for doctors to use;
The inner tube wall is smooth and easy to assemble;
Good anti-bending performance and strong pushing ability;
Large inner lumen, easy to save space, good supporting performance;
The outer tube wall is smooth and easy to use.

SPECIFICATIONS
APPLICATIONS
CONTACT US

Endoscope Insertion Tube
Outer Diameter	0.8 mm - 6.8 mm
Inner Diameter	0.5 mm - 6 mm
Outer Jacket Materials	TPU, PA12, PEBAX
Reinforcement Materials	Stainless Steel
Liner Materials	PTFE, PA12, PEBAX, PVDF

- Digestive system examination and treatment: Endoscopic insertion tubes are widely used in digestive system diseases.
- Diagnosis of respiratory system diseases: Fiber bronchoscopes are an important tool for the diagnosis of respiratory system diseases.
- Treatment of urinary system diseases: In the field of urology, endoscope insertion tubes are widely used in the treatment of diseases such as kidney stones and bladder tumors.
- Gynecological and obstetric applications: Hysteroscopy can be used for the diagnosis and treatment of diseases such as endometrial polyps and uterine fibroids; laparoscopy is widely used in the surgical treatment of gynecological diseases such as ectopic pregnancy and ovarian cysts.
