High Pressure Braided Tubing

High-Pressure Braided Tubing, or High-Pressure Monitoring Tubing, is used to inject contrast media and other medical solutions during PTCA, PCI procedures or angioplasty procedures.

Advantages:

Double-layer TPU has good biocompatibility;

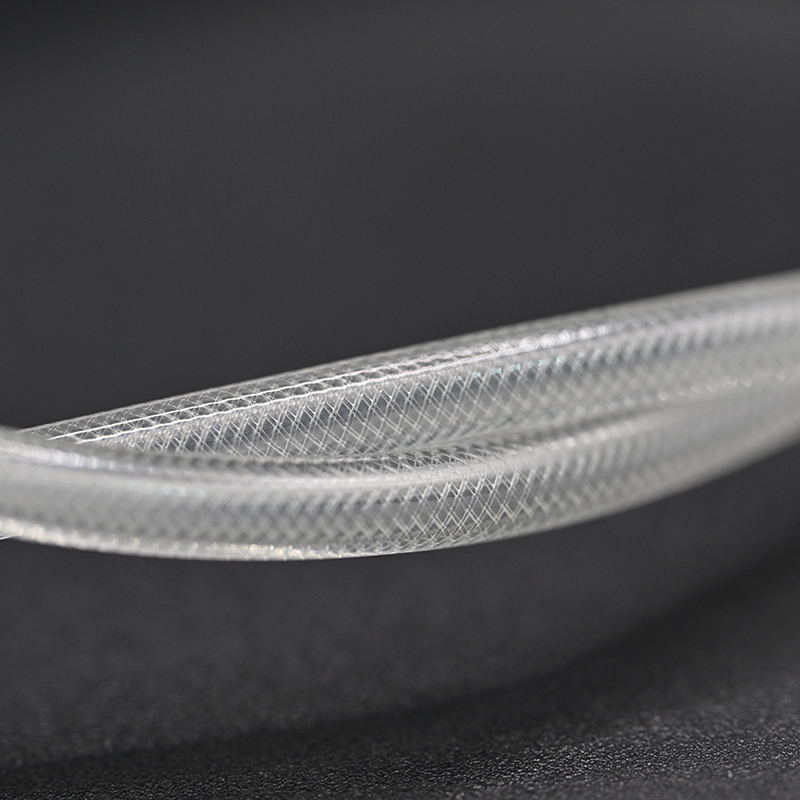

Nylon braided layer enhances the bearing capacity of the tube while maintaining good flexibility;

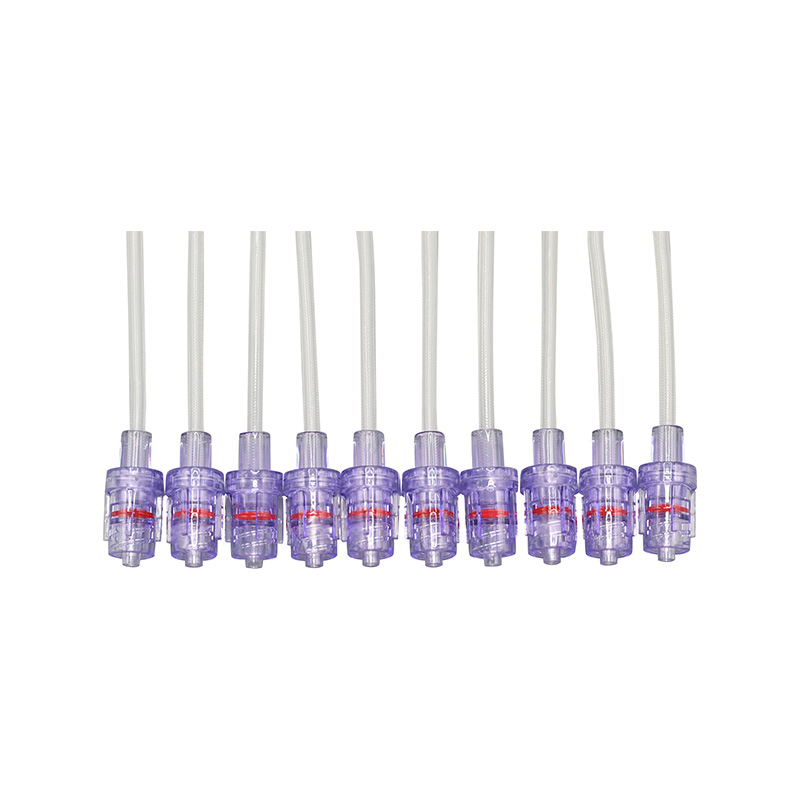

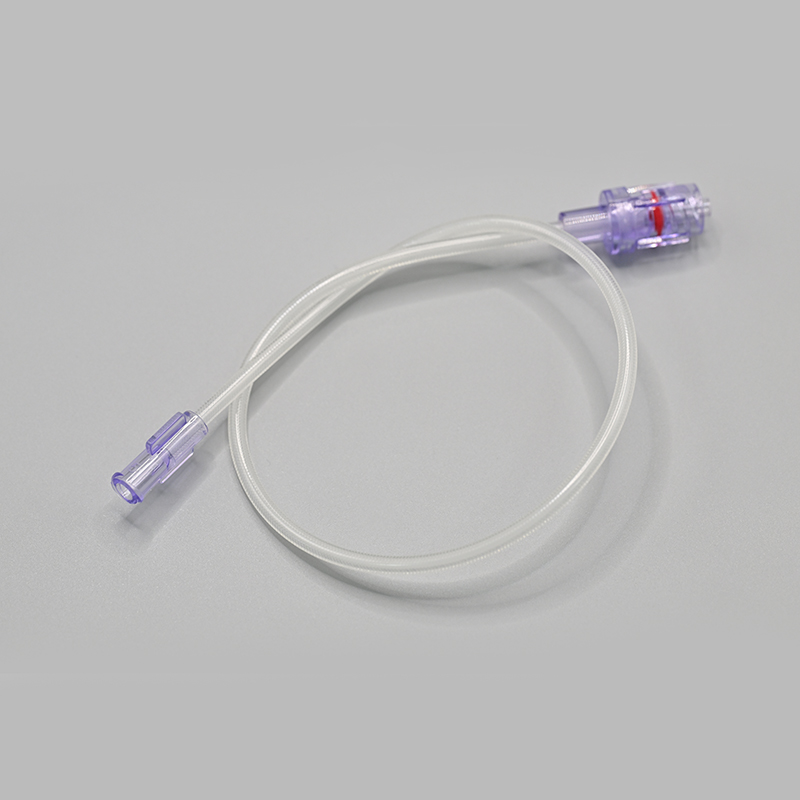

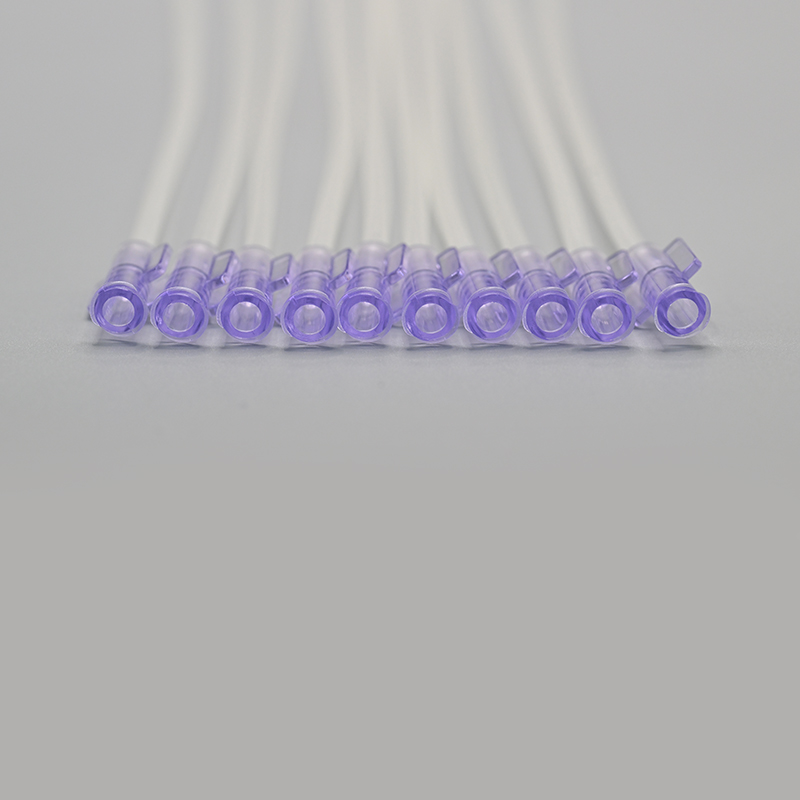

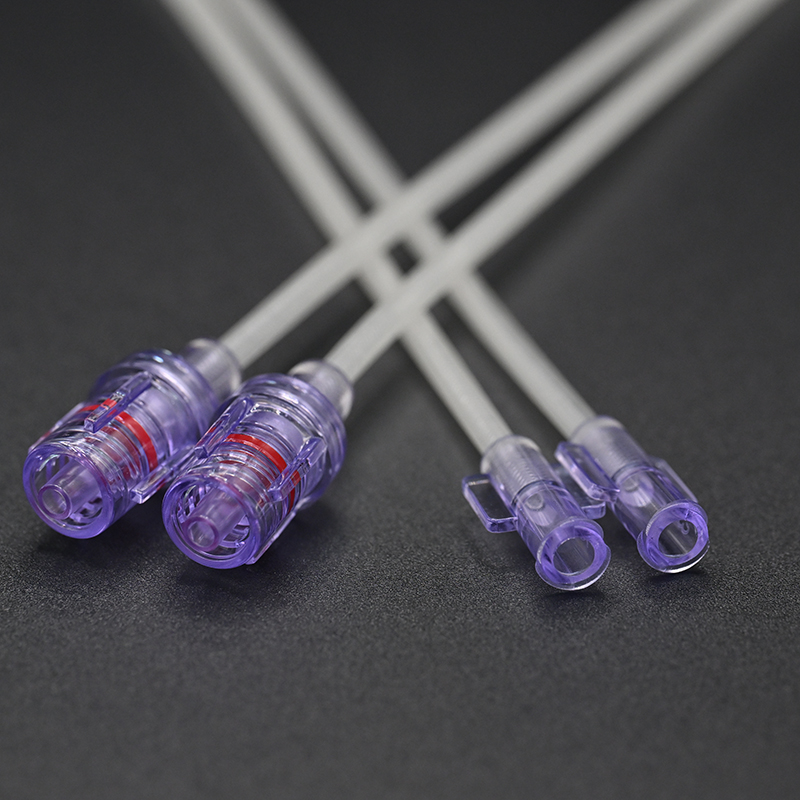

Equipped with standard PC material Luer male and female connectors;

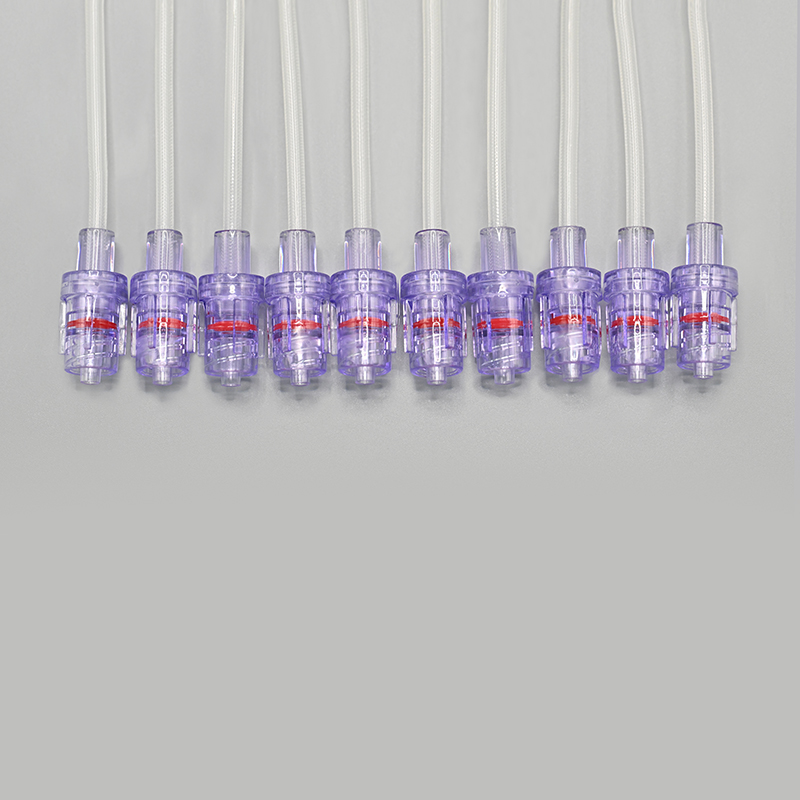

High-strength male connector with 360-degree rotation;
It can withstand normal working pressure of 1200 psi;
Maximum burst pressure: 1500psi;
Bending-resistance.

SPECIFICATIONS
APPLICATIONS
CONTACT US

High Pressure Braided Tubing
Typical Dimensions	Inner Diameter (ID): 1.8 mm Outer Diameter (OD): 3.6 mm
Standard Lengths	12" & 24" (30.5 cm & 61 cm)
Material	Flexible Polyurethane, USP Class VI
Reinforcement	Nylon filament
Pressure Rating	1200 psi (min)
Printing	Can be printed using conventional techniques
Custom Sizes and Materials Available

Our product is designed for use in cardiac procedures such as Percutaneous Transluminal Coronary Angioplasty (PTCA) and Percutaneous Coronary Intervention (PCI). We manufacture high-pressure braided tubing in strict adherence to medical industry standards and have received the necessary certifications. This ensures that we provide medical device manufacturers with reliable tubing products.

Our company has advanced production equipment and a professional technical team with the ability to mass-produce high-pressure braided tubing. The production workshop is equipped with automated production lines and intelligent testing equipment to ensure that each high-pressure braided tubing meets standards. The company's annual output can reach millions of meters, which can meet the needs of different industries and customers. At the same time, we continue to invest in research and development funds to improve production processes, production efficiency and product quality.
