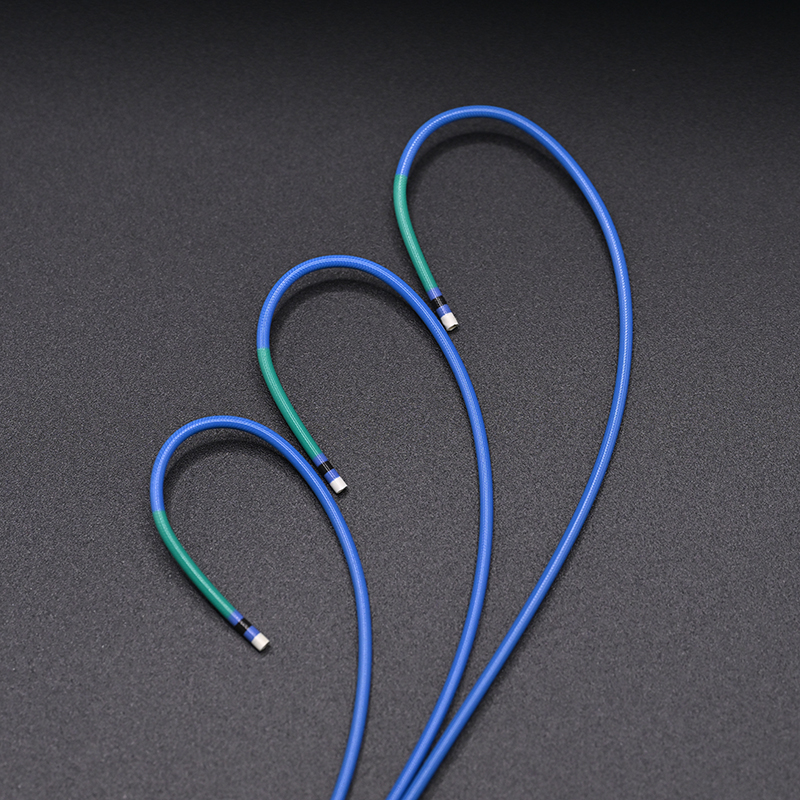

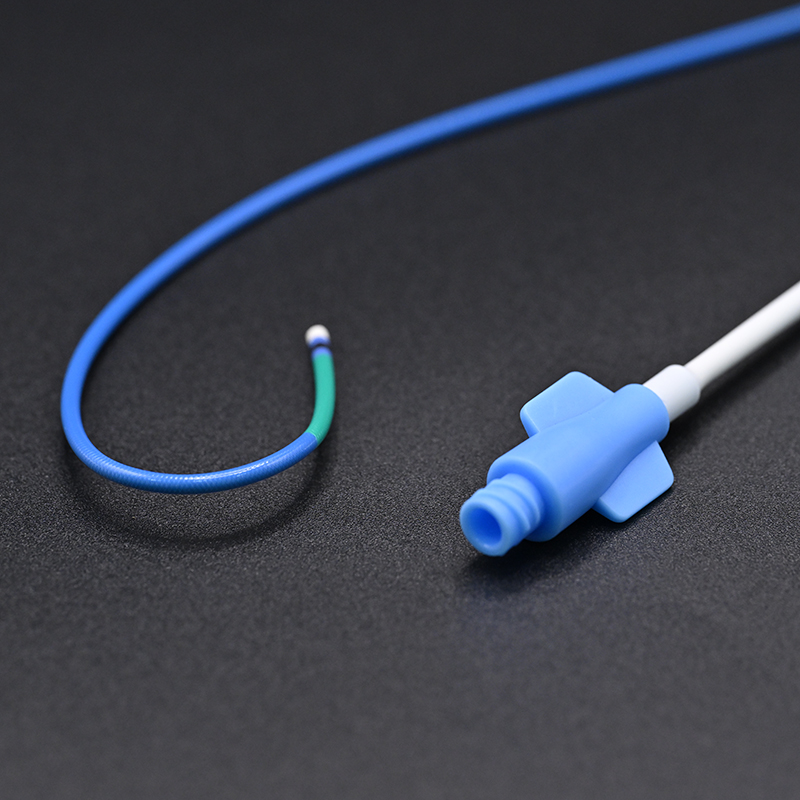

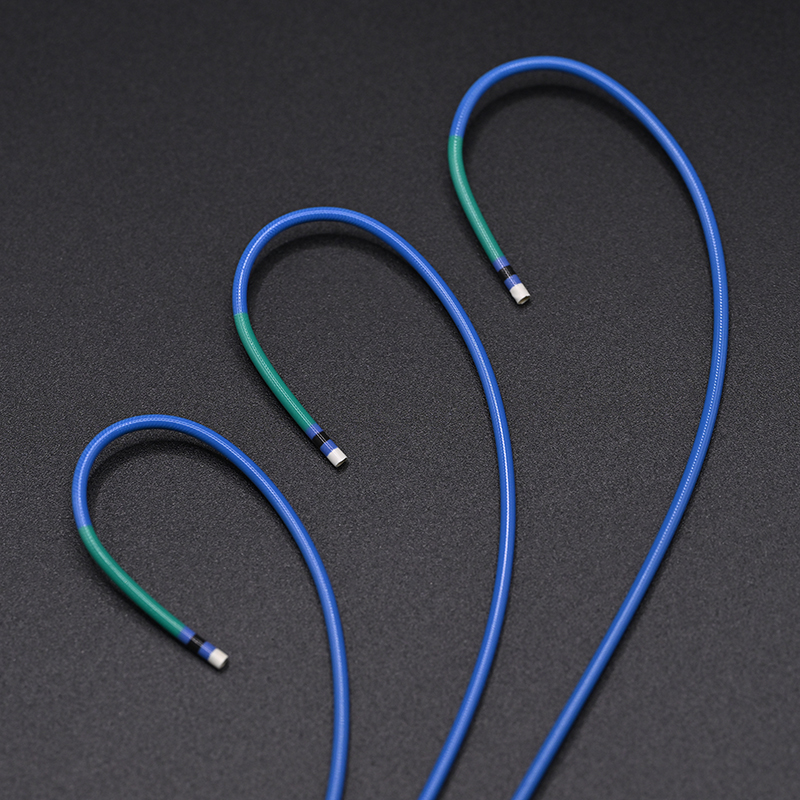

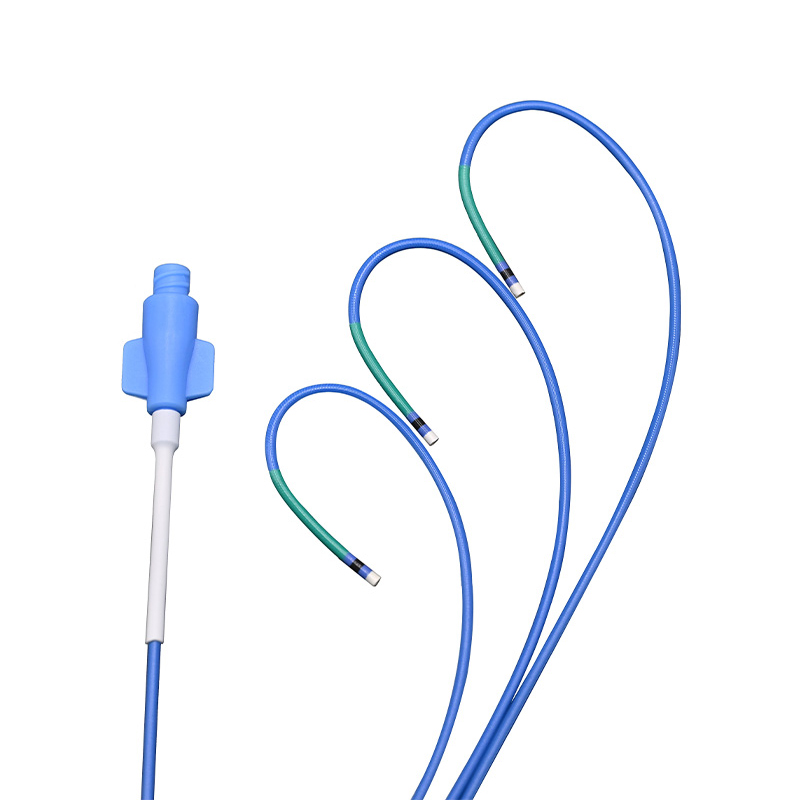

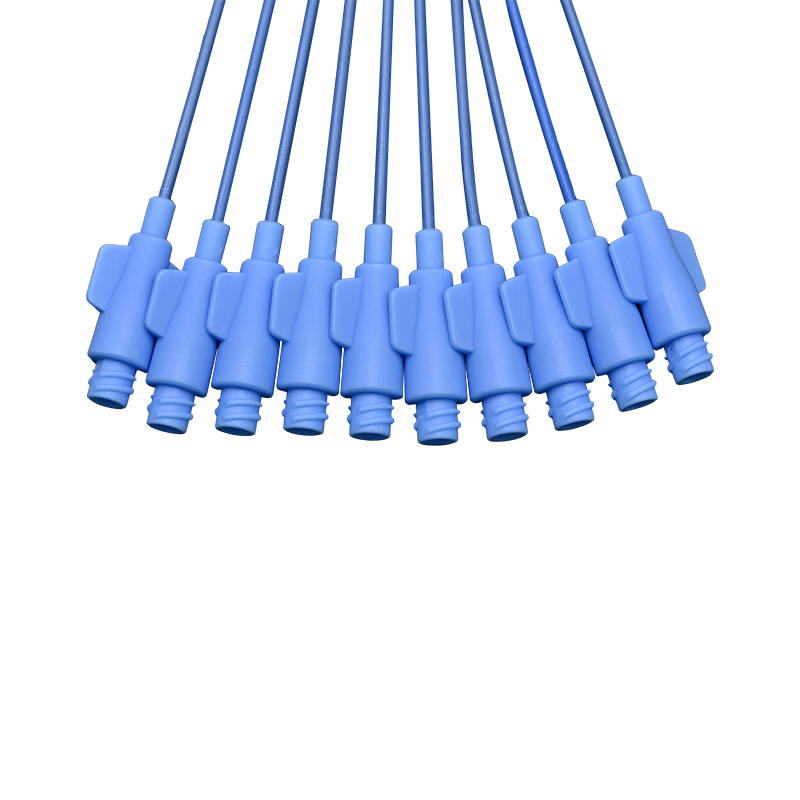

Guiding Catheter

Description:

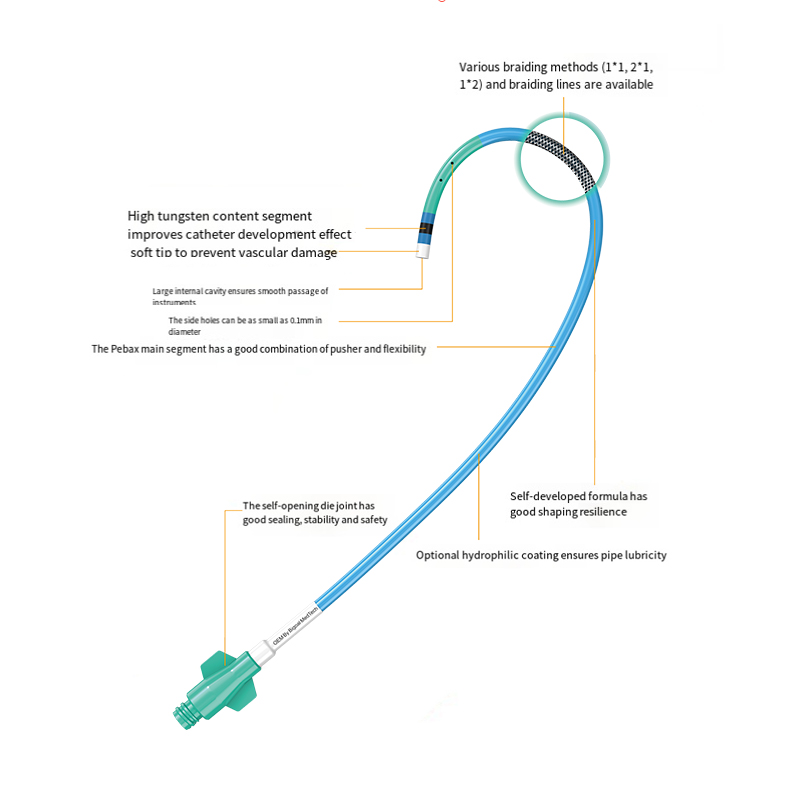

Multi-stage design with different hardness makes the tube more flexible;

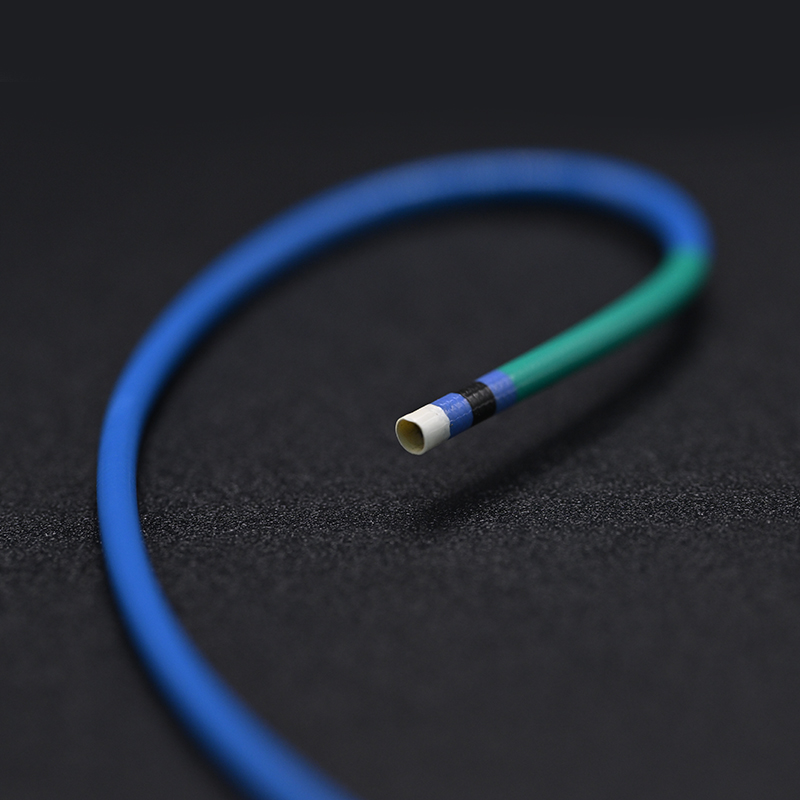

The head end is soft to reduce damage to blood vessels and tissues;

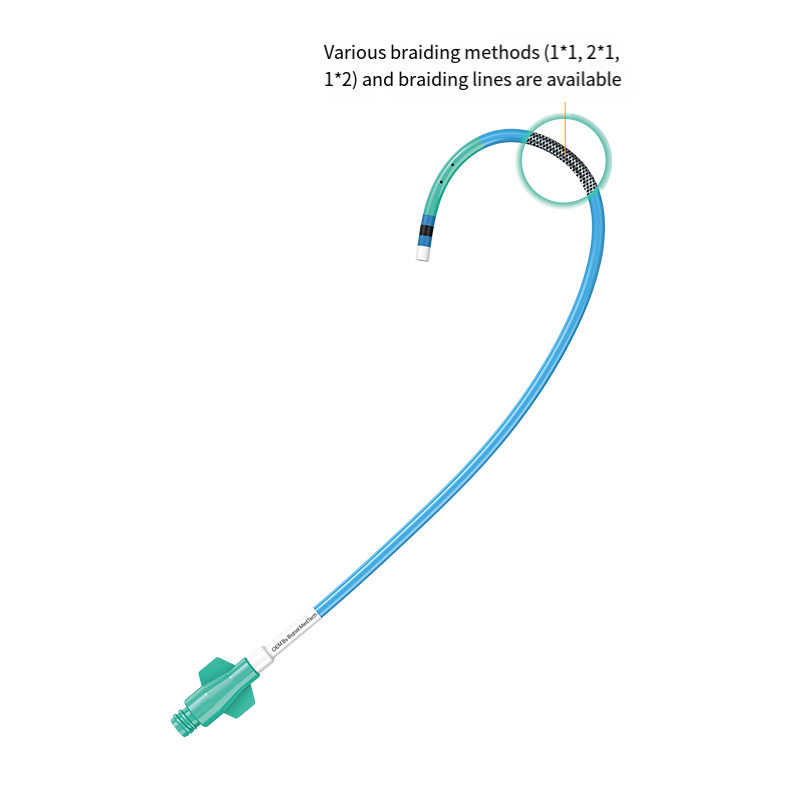

The braided structure provides higher torque, stability and operability;
The ultra-thin wall combined with the large inner cavity makes it easier for complex instruments to pass;
The low-friction PTFE inner layer, supports the smooth delivery of guidewires or high-viscosity fluids;
It has the good shape retention ability and can provide reliable support for long-term operations.

Advantages:

Advanced equipment and technology;
Good plasticity;
Ultra-thin wall thickness and large inner cavity;
Good contrast performance.

SPECIFICATIONS
APPLICATIONS
CONTACT US

Guiding Catheter
Dimension	Length (mm)	OD (mm)	ID (mm)	Curve
5F	1050	1.80±0.03	1.50±0.03	JL-35
5F	1050	1.80±0.03	1.50±0.03	JL-40
5F	1050	1.80±0.03	1.50±0.03	JR-35
5F	1050	1.80±0.03	1.50±0.03	JR-40
5F	1050	1.80±0.03	1.50±0.03	EBU40
5F	1050	1.80±0.03	1.50±0.03	EBU-30
5F	1050	1.80±0.03	1.50±0.03	EBU35
6F	1050	2.10±0.03	1.80±0.03	JL-35
6F	1050	2.10±0.03	1.80±0.03	JL-40
6F	1050	2.10±0.03	1.80±0.03	JR-35
6F	1050	2.10±0.03	1.80±0.03	JR-40
6F	1050	2.10±0.03	1.80±0.03	EBU40
6F	1050	2.10±0.03	1.80±0.03	EBU-30
6F	1050	2.10±0.03	1.80±0.03	EBU35
7F	1050	2.40±0.03	2.08±0.03	JL-35
7F	1050	2.40±0.03	2.08±0.03	JL-40
7F	1050	2.40±0.03	2.08±0.03	JR-35
7F	1050	2.40±0.03	2.08±0.03	JR-40
7F	1050	2.40±0.03	2.08±0.03	EBU40
7F	1050	2.40±0.03	2.08±0.03	EBU-30
7F	1050	2.40±0.03	2.08±0.03	EBU35
8F	1050	2.65±0.03	2.30±0.03	JL-35
8F	1050	2.65±0.03	2.30±0.03	JL-40
8F	1050	2.65±0.03	2.30±0.03	JR-35
8F	1050	2.65±0.03	2.30±0.03	JR-40
8F	1050	2.65±0.03	2.30±0.03	EBU40
8F	1050	2.65±0.03	2.30±0.03	EBU-30
8F	1050	2.65±0.03	2.30±0.03	EBU35

The application of guiding catheter is not limited to traditional vascular interventional treatment, but also extends to multiple medical fields such as tumors, nerves, respiratory, urology, etc. With the continuous advancement of technology, the functions of guide catheters are becoming more and more sophisticated, which can help doctors make more accurate diagnosis and treatment.

Cardiovascular: Coronary artery intervention, angioplasty, cardiac catheterization.
- Neurology: Cerebrovascular intervention, spinal surgery;
- Oncology: Oncology intervention, radiotherapy assistance;
- Urinary system: Urography, renal intervention;
- Digestive system: Gastrointestinal endoscopy, esophageal cancer treatment;
- Respiratory system: Airway stent implantation, pulmonary intervention;
- Hemodialysis: Dialysis line guidance;
- Trauma emergency: Vascular intervention for trauma patients.
