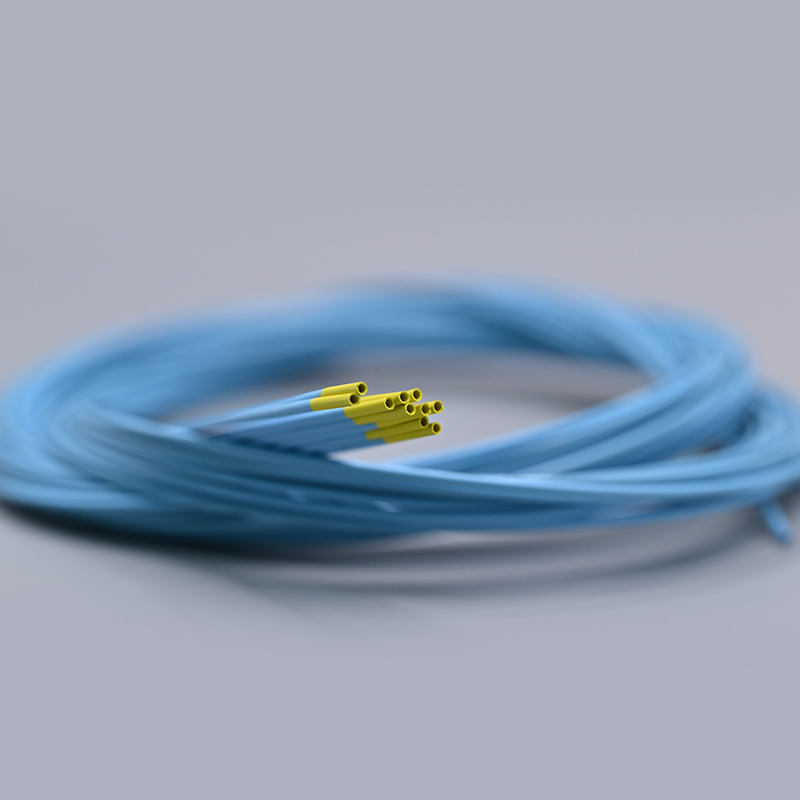

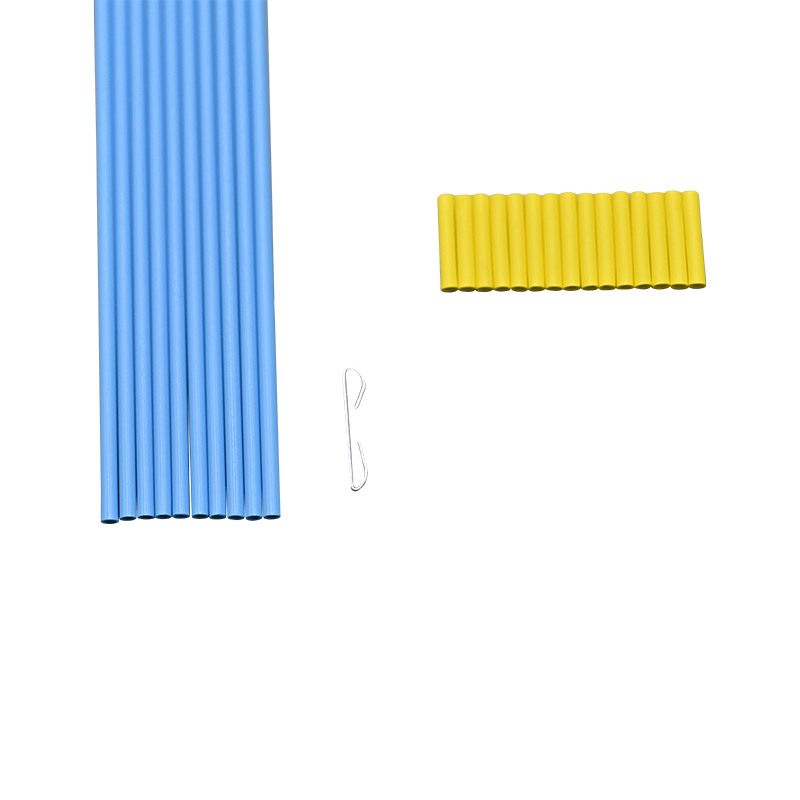

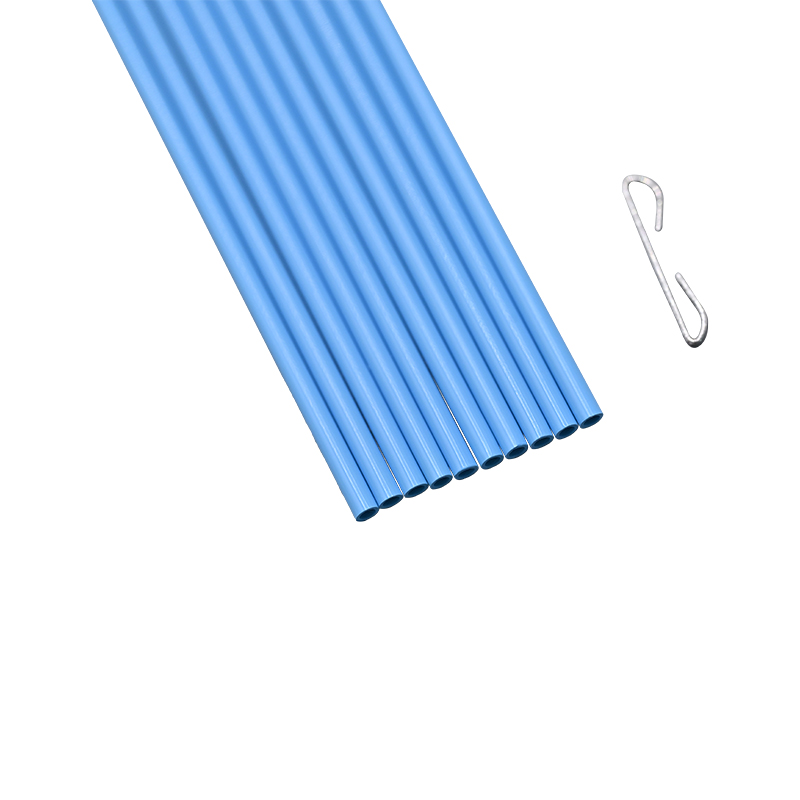

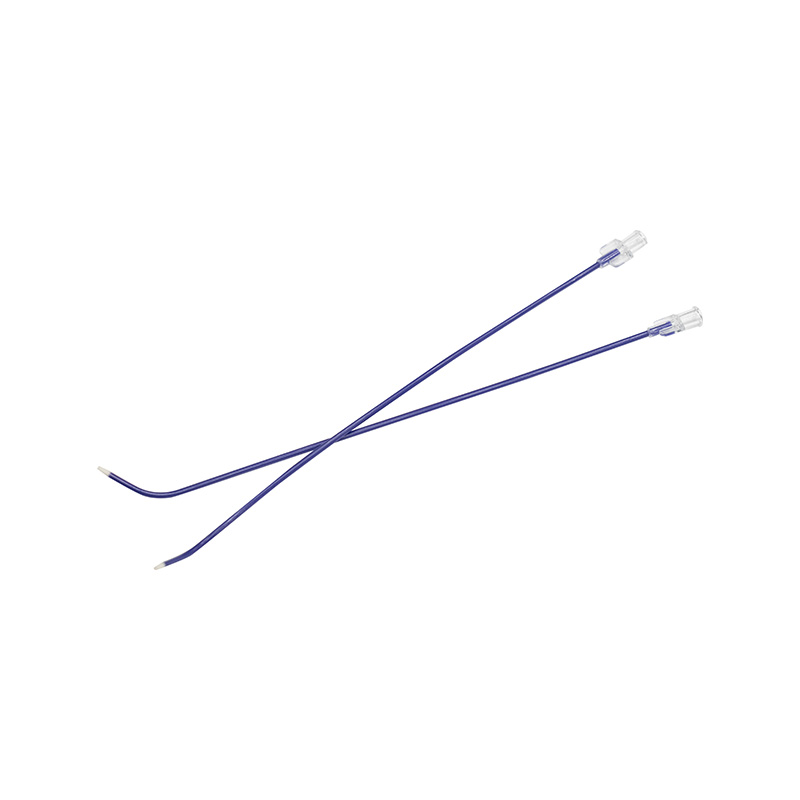

Angiographic Catheter

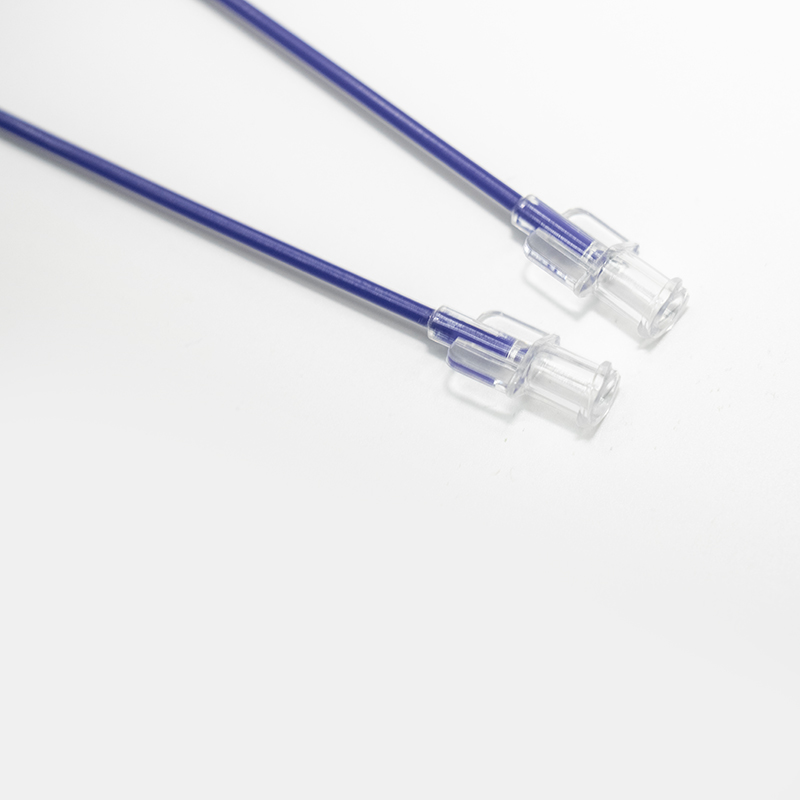

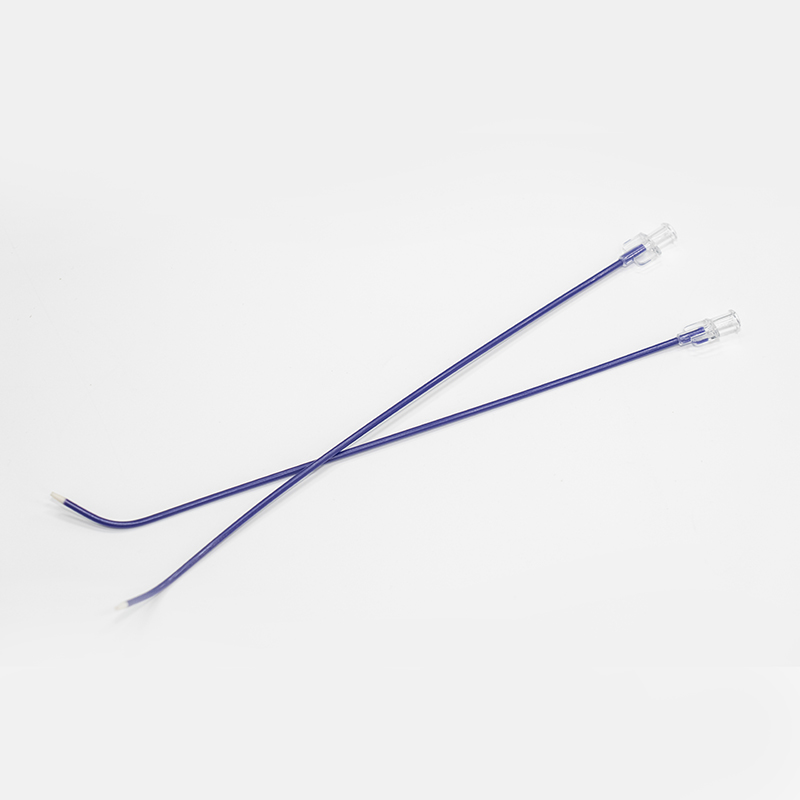

The angiographic catheter consists of three parts: the catheter tip, the body and the connector. By providing a channel, the radiopaque agent can enter the blood vessels smoothly, and the vascular structure can be displayed under X-rays, helping doctors to accurately diagnose and treat various vascular diseases. This product is made of reliable materials and has appropriate hardness, elasticity, softness and twist control during operation, reducing damage to the patient's blood vessels.

Advantages:

Medical PEBAX material, braided with stainless steel wire;
Various specifications and models available;

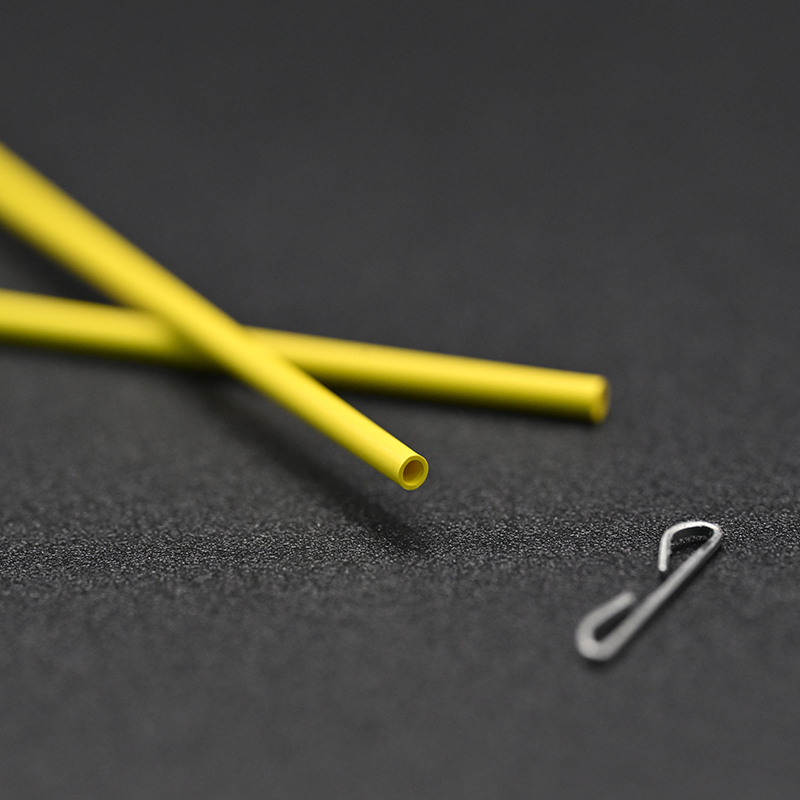

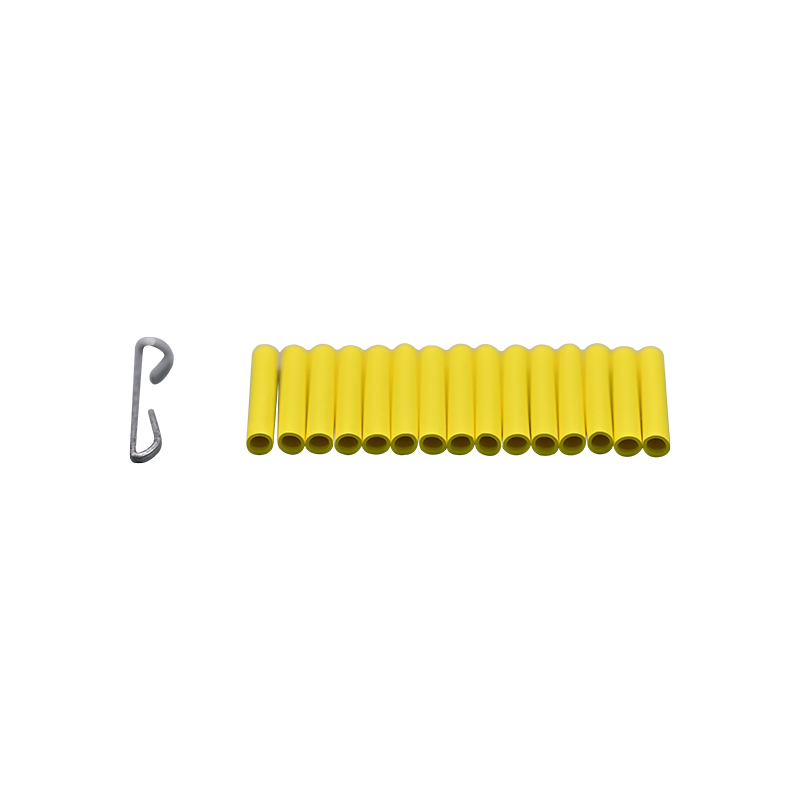

The catheter tip has good radiopaque performance;

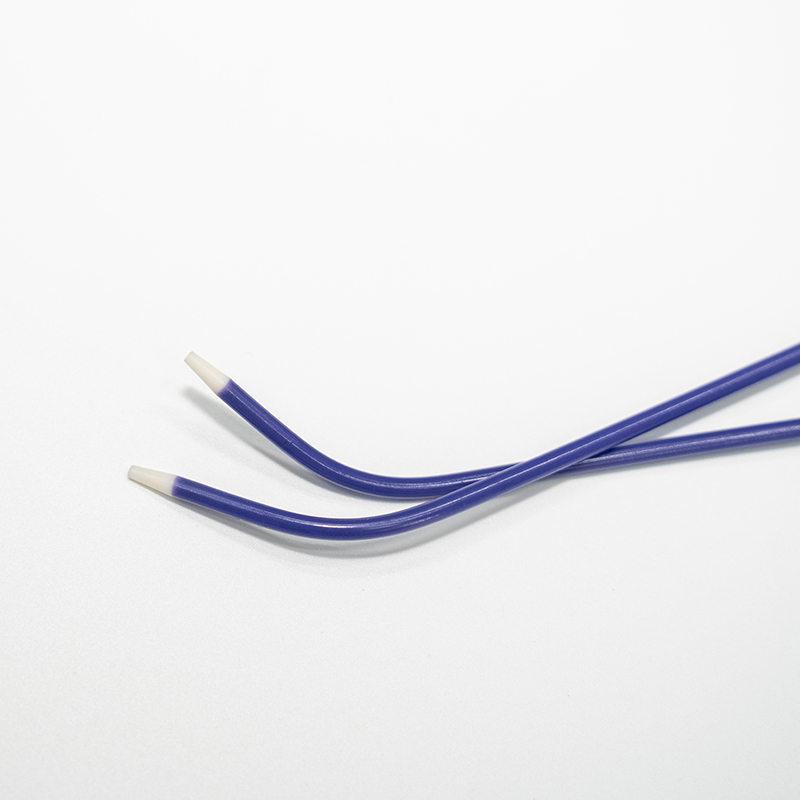

The catheter tip is soft to prevent trauma to blood vessels;
The soft head weld is fused well;
The catheter body can withstand pressure up to 1200PSI (83BAR);
Good anti-bending performance and strong pushing ability;
Large inner lumen and good supporting performance, allowing contrast agent to be smoothly introduced into the blood vessel;
The head end has good shape memory and good flexibility;
The outer tube wall is smooth and has the ability to control thrombus;
The inner tube wall is smooth and easy for the guidewire to pass through.

SPECIFICATIONS
APPLICATIONS
CONTACT US

Angiographic Catheter
Curve	Dimension	Length (cm)	Side hole
COBRA Ⅰ	4F/5F/6F	100 / 81	/
COBRA Ⅱ	4F/5F/6F	100 / 81	/
COBRA Ⅲ	4F/5F/6F	100 / 81	/
HeadHunter 1	4F/5F/6F	101	/
HeadHunter 2	4F/5F/6F	101	/
MPA	4F/5F/6F	100 / 81	/
PIG	4F/5F/6F	100 / 81	8
RH	4F/5F/6F	81	/
RLG	4F/5F/6F	101	/
RS	4F/5F/6F	81	/
RUC	4F/5F/6F	91	/
Straight	4F/5F/6F	120 / 100 / 81	6
TRG	4F/5F/6F	101	1
VTK	4F/5F/6F	126	/
Yashiro	4F/5F/6F	71	/

- Cardiovascular system angiography: Angiographic catheters are widely used in coronary angiography, cardiac angiography and peripheral angiography.
- Neurological system angiography: In cerebral angiography, angiographic catheters are used to examine cerebrovascular diseases, such as cerebral aneurysms, vascular malformations, etc.
- Tumor interventional diagnosis and treatment: Angiographic catheters play an important role in the interventional treatment of tumors.
- Angiographic catheters are also used for angiography examinations of the biliary system, urinary system, respiratory system and other parts, providing important support for the diagnosis and treatment of diseases.
Available Sample Sizes:

4F (1.4*1.03mm),

5F (1.7*1.13; 1.7*1.21mm),

6F (1.98*1.38mm),

7F (2.34*1.1mm) available.

Specific customization can be made according to customer requirements.

It can be extruded, braided, welded, tipped, shaped, rheologically, and injection molded.
