Why Reinforced Polyimide Tubing Is the Preferred Choice for Medical Catheters
Medical reinforced polyimide tubing is used in catheters because it combines an extremely thin wall with high tensile strength, precise torque transmission, and strong kink resistance, which allows device engineers to build catheter shafts that navigate narrow, tortuous vascular pathways without sacrificing pushability or structural integrity. Polyimide resin itself already offers outstanding dimensional stability and chemical resistance, and when a braided or coiled metal reinforcement layer is added, the tubing gains the mechanical strength needed for the pushing, torquing, and bending motions that interventional procedures demand. This combination is the reason reinforced polyimide has become a standard construction method across guiding catheters, microcatheters, delivery sheaths, and access devices used in cardiovascular, neurovascular, and peripheral vascular procedures.
The sections below walk through the material science, the reinforcement structures, the performance differences compared with non-reinforced tubing, common application areas, and the manufacturing considerations that shape a finished reinforced polyimide catheter shaft.

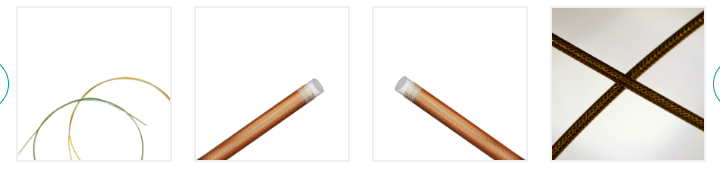

What Is Medical Reinforced Polyimide Tubing
Reinforced polyimide tubing for catheters is a composite tubular structure built from a base polyimide layer, a metal reinforcement layer such as stainless steel or nickel titanium wire, and often a secondary polymer jacket. The polyimide layer, usually applied first through a solvent-cast or extrusion process, forms a very thin and dimensionally stable inner wall. A braiding or coiling process then wraps fine wire around that base layer, after which an outer polymer coating locks the reinforcement in place and creates a smooth, continuous outer surface.
This layered approach is why the construction is frequently described as braided polyimide catheter tubing or coil-reinforced polyimide tubing, depending on the pattern used for the wire layer. Braided constructions typically favor torque transmission and burst pressure resistance, while coiled constructions favor flexibility and kink resistance along curved anatomy.
Core Construction Layers
- Inner polyimide liner: provides a smooth, low-friction lumen surface and a thin, dimensionally stable base wall
- Reinforcement layer: braided or coiled fine wire that adds torque control, burst strength, and kink resistance
- Outer polymer jacket: locks the reinforcement in position and creates a smooth outer profile for tracking through the vasculature
Key Material Properties That Make Polyimide Suitable for Catheters
Polyimide is chosen as the base layer for reinforced catheter tubing because of its balance of thin-wall strength, thermal stability, and chemical resistance. Compared with many other engineering polymers used in extruded medical tubing, polyimide allows a thinner wall to carry a similar mechanical load, which directly supports smaller catheter outer diameters without giving up lumen size.
Because unreinforced polyimide is relatively rigid and can be prone to kinking under sharp bend radii, catheter engineers add braided or coiled reinforcement to compensate for the moderate flexibility rating while keeping the strength and thin-wall advantages of the base polymer. This is one of the main reasons medical reinforced polyimide tubing is specified instead of using polyimide alone in most catheter shaft designs.
How Braiding and Coiling Improve Catheter Shaft Performance
Reinforcement is added to polyimide tubing to solve three practical problems that engineers face when designing catheter shafts: maintaining lumen patency during bending, transmitting rotational torque from the proximal end to the distal tip, and resisting the internal pressure generated during contrast injection or balloon inflation. A braided layer, typically made of fine stainless steel or nickel titanium wire woven in a criss-cross pattern, distributes stress evenly around the circumference of the tube and is especially effective for one-to-one torque transmission in guiding catheters and delivery systems.
A coiled layer, by contrast, wraps a single or dual wire in a helical pattern along the tube length. Coil reinforcement is generally favored in sections of a catheter that need to flex through tight anatomical curves, such as distal microcatheter segments, because the open pitch of a coil resists kinking while still allowing the shaft to bend smoothly.
Comparing Reinforcement Patterns
Many finished catheter shafts do not rely on a single reinforcement type along the entire length. Instead, a proximal segment may use a tighter braid for pushability and torque, while a distal segment transitions to an open coil for flexibility, a technique referred to as variable stiffness or transition zone design. This hybrid approach is common in reinforced polyimide tubing for microcatheters where the distal tip must navigate small, tortuous vessels while the proximal shaft still needs to transmit pushing force.
Performance Comparison: Reinforced vs Non-Reinforced Polyimide Tubing
The practical value of adding a reinforcement layer becomes clearer when comparing reinforced and non-reinforced polyimide tubing across the performance factors that matter most in catheter applications. Non-reinforced polyimide tubing performs well in straight, low-torque applications such as certain introducer or protective sheaths, but it is limited in scenarios that require repeated flexing, torque transmission, or higher burst pressure resistance.
Comparison Summary
| Performance Factor | Non-Reinforced Polyimide | Reinforced Polyimide |
|---|---|---|
| Torque Transmission | Limited | Strong, near one-to-one |
| Kink Resistance | Moderate | Improved along curves |
| Burst Pressure Tolerance | Lower | Higher |
| Typical Application | Simple sheaths, liners | Catheter shafts, delivery systems |
Where Medical Reinforced Polyimide Tubing Is Used
Reinforced polyimide tubing appears across a wide range of minimally invasive device categories because the same core benefits, thin wall, high strength, and predictable flex, apply to many different clinical needs. The following table lists common device categories where this tubing construction is typically found.
| Device Category | Why Reinforced Polyimide Is Used |
|---|---|
| Guiding Catheters | Torque control and thin wall for larger inner lumen |
| Microcatheters | Flexibility with kink resistance in small vessels |
| Delivery Sheaths | Burst strength during device deployment |
| Access Catheters | Consistent pushability along tortuous paths |
| Steerable Catheter Shafts | Predictable bend behavior for tip control |
Because clinical requirements vary by procedure, many device teams work with a medical reinforced PI tubing supplier that can adjust braid density, coil pitch, wall thickness, and jacket material to match a specific catheter design rather than using a single fixed specification across every product line.
Design Considerations for Custom Reinforced Polyimide Tubing
Selecting the right configuration of reinforced polyimide tubing depends on several interacting design variables. Engineers typically evaluate the following factors together rather than in isolation, since changing one variable, such as braid density, will affect others, such as wall thickness or flexibility.
- Wire pattern: braided for torque-heavy segments, coiled for flexible distal segments
- Wire material: stainless steel for stiffness, nickel titanium for elastic recovery
- Pick count or pitch: denser patterns increase torque response and burst strength
- Wall thickness: thinner walls maximize lumen size but require careful reinforcement balance
- Outer jacket material: affects lubricity, bond strength, and overall shaft stiffness
- Transition zones: gradual stiffness changes reduce the risk of kinking at junction points
Because catheter shafts often need different mechanical behavior along their length, a custom reinforced polyimide tubing build is common practice rather than a single uniform specification. This is typically achieved by varying the braid or coil parameters section by section during production, then bonding the segments into a continuous shaft.
Manufacturing Process Overview
Producing reinforced polyimide tubing generally follows a sequence that starts with a base polyimide liner and ends with a finished, jacketed composite tube ready for catheter assembly. While specific process parameters vary between manufacturers, the general workflow includes the following stages.
Stage Descriptions
- Liner formation: the polyimide base tube is formed and cured to precise inner and outer diameters
- Braiding or coiling: fine wire is applied over the liner in the specified pattern and pitch
- Jacketing: an outer polymer layer is applied to encapsulate the reinforcement and smooth the outer surface
- Bonding and transition work: multiple segments are joined to create variable stiffness along the shaft
- Inspection: dimensional, visual, and mechanical checks confirm the tubing meets design specifications
About LINSTANT: A Manufacturing Partner for Reinforced Polyimide Tubing
NINGBO LINSTANT POLYMER MATERIALS CO., LTD. was established in 2014 and has since focused on extrusion processing, coating, and post-processing technology for medical polymer tubing. The company positions itself as a bridge between material suppliers and device manufacturers, aiming to deliver consistent, efficient innovation to customers working on catheter and minimally invasive device programs. As a reinforced polyimide tubing supplier, LINSTANT supports extruded single and multi-layer tubing, single and multi-lumen tubing, single, double, and tri-layer balloon tubing, coil and braided reinforced sheaths, and specialty engineering material tubing including PEEK and polyimide.
LINSTANT operates a purification workshop spanning nearly 20,000 square meters that follows GMP-aligned practices, supported by 15 imported extrusion lines with various screw sizes and single, double, and tri-layer co-extrusion capability, eight PEEK extrusion lines, two injection molding lines, close to 100 sets of weaving and springing and coating equipment, and forty sets of welding and forming equipment.
Company Snapshot
| Metric | Figure |
|---|---|
| Extrusion Tubing Output | 20,000,000+ per year |
| Braided Tube and Sheath Output | 2,000,000+ per year |
| Clean Room Area | 30,000 square meters, Class ISO-7 and ISO-8 |
| Testing and Experimental Equipment | 1,500+ sets |
| Device Partners | 600+ |
LINSTANT describes its mission as paving the way with materials and innovating for immediate impact, with a vision of empowering global minimally invasive medical devices through Chinese expertise. The company's core values center on independent innovation, striving for excellence, prioritizing responsibility, and collaborative success, positioning it as a working partner for teams evaluating a medical reinforced polyimide tubing supplier for catheter shaft development.
Frequently Asked Questions
Q1. What is medical reinforced polyimide tubing?
It is a composite catheter tubing built from a thin polyimide liner combined with a braided or coiled metal reinforcement layer and an outer polymer jacket, used to give catheter shafts strength, torque control, and flexibility.
Q2. What is reinforced polyimide tubing used for?
It is primarily used to build catheter shafts, delivery sheaths, and access devices where thin walls, torque transmission, and kink resistance are all required at the same time.
Q3. Why is polyimide used in medical tubing?
Polyimide offers a strong balance of tensile strength, thermal stability, and chemical resistance in a very thin wall, which allows engineers to keep catheter outer diameters small while preserving lumen size.
Q4. What are the benefits of reinforced polyimide tubing?
Key benefits include improved torque transmission, higher burst pressure tolerance, better kink resistance along curves, and the ability to maintain a thin wall profile compared with non-reinforced tubing.
Q5. What medical devices use reinforced polyimide tubing?
Guiding catheters, microcatheters, delivery sheaths, access catheters, and steerable catheter shafts are common device categories that rely on this tubing construction.
Q6. Why is reinforced polyimide tubing used in catheters?
Catheters require a shaft that can be pushed, torqued, and bent through narrow vascular pathways, and the reinforcement layer gives the thin polyimide base the mechanical strength needed for these motions.
Q7. What is reinforced polyimide catheter tubing?
It refers specifically to polyimide tubing engineered with a braided or coiled reinforcement layer for use as, or within, a catheter shaft structure.
Q8. How does reinforced tubing improve catheter performance?
Reinforcement distributes mechanical stress along the tube, improving torque response, resisting kinking during navigation, and increasing resistance to internal pressure during procedures such as contrast injection.
Q9. What is a reinforced catheter shaft?
A reinforced catheter shaft is the main body of a catheter built using reinforced tubing, often combining different braid or coil patterns along its length to balance pushability with distal flexibility.
Q10. What is the best material for catheter shafts?
There is no single best material for every catheter shaft, since the choice depends on the procedure, but reinforced polyimide is widely selected when thin wall strength, torque control, and flexibility must all be balanced together.
